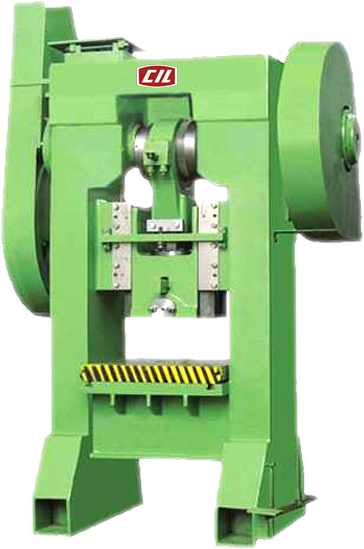

Trimming Press 'H' Frame

Charika industries Manufacture premium quality of hydraulic'H'Frame power press industry is competitive,but in the world of competitors,we are among the best! We offer High Quality & Cost-Effective Mechanical H-Frame trimming press.Unmatched Features & Performance and diffrenr Range of power presses.We are Certified manufacturers of Mechanical power press in India.we work with customers to create the ideal designs for their unique circumstances.

We have a Good ability to make the most premium quality products! At Accudyne Engineering & Equipment Company we work to make versatile, well-designed, and durable hydraulic presses! Our hydraulic press works off of our unique press technologies. We are proficient in delivering high-quality products. Our expertise is sure to make your next project as simple as possible! For more information on our hydraulic presses, give us a call today!.

Key Features

  • Sturdy construction
  • High operational fluency
  • Impeccable performance
  • Negligible maintenance
    • Download brochure



    Specifications of Trimming Press 'H' Frame

    Capacity of Tons 20 30 Ton 50 Ton 75 Ton 100 Ton 150 Ton 200 Ton 250 Ton 300 Ton 400 Ton 500 Ton 600 Ton
    Table Size in mm 440x440 430x445 455x480 525x580 555x600 665x660 800x800 850x850 900x900 1000x1000 1100x1100 1200x1200
    Distance Table to Ram 25 260 300 350 375 425 450 550 550 600 650 700
    Stroke Length 65 75 90 100 100 125 150 150 150 150 200 200
    Ram Adjustment 25 25 38 38 38 50 50 50 50 60 60 60
    Shut Height 185 185 210 250 275 300 300 350 400 450 500 500
    Stroke Per Minute 70 65 60 50 45 40 35 35 35 30 30 30
    Bore In Table 120 120 150 175 200 225 250 250 300 300 300 300
    Power Required 2HP 3HP 5HP 5HP 7HP 10HP 15HP 20HP 30HP 40HP 50HP 60HP
    RPM 1440 1440 1440 1440 1440 1440 1440 1440 1440 1440 1440 1440
    Pully Size 150 150 150 150 150 175 200 200 225 225 225 225
