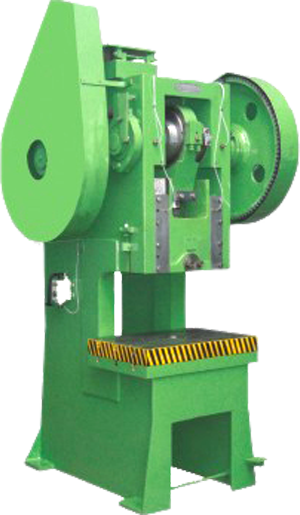

Trimming Press 'C' Frame

The hydraulic power press industry is competitive, but in the world of competitors, we are among the best! We offer High Quality & Cost-Effective Mechanical Trimming press 'C' Frame.Unmatched Features & Performance and diffrenr Range of power presses.We are Certified manufacturers of Mechanical power press in India.we work with customers to create the ideal designs for their unique circumstances.

We have a Good ability to make the most premium quality products! At Accudyne Engineering & Equipment Company we work to make versatile, well-designed, and durable hydraulic presses! Our hydraulic press works off of our unique press technologies. We are proficient in delivering high-quality products. Our expertise is sure to make your next project as simple as possible! For more information on our hydraulic presses, give us a call today!.

Key Features

  • Sturdy construction
  • High operational fluency
  • Impeccable performance
  • Negligible maintenance
    • Download brochure



    Specifications of Trimming Press 'H' Frame

    Capacity of Tons 20 30 Ton 50 Ton 75 Ton 100 Ton 150 Ton 200 Ton 250 Ton
    Table Size in mm 440x440 430x445 455x480 525x580 555x600 665x660 800x800 850x850
    Distance Table to Ram 25 260 300 350 375 425 450 550
    Stroke Length 65 75 90 100 100 125 150 150
    Ram Adjustment 25 25 38 38 38 50 50 50
    Shut Height 185 185 210 250 275 300 300 350
    Stroke Per Minute 70 65 60 50 45 40 35 35
    Bore In Table 120 120 150 175 200 225 250 250
    Power Required 2HP 3HP 5HP 5HP 7HP 10HP 15HP 20HP
    RPM 1440 1440 1440 1440 1440 1440 1440 1440
    Pully Size 150 150 150 150 150 175 200 200
