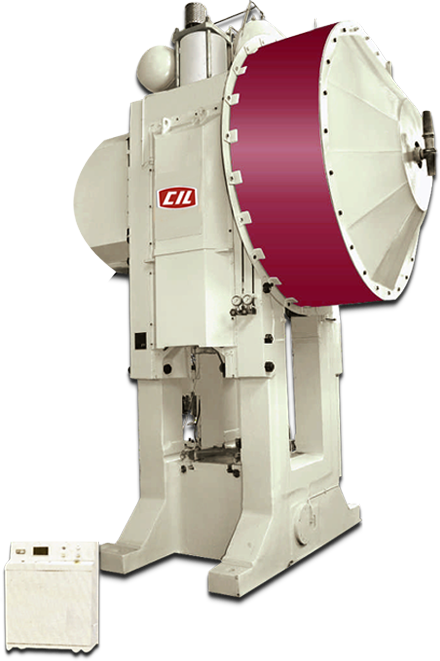

Hot Forging Press

Charik Industries manufature and suppliers of Warm-hot forging presses are ideal for producing parts made from material with flow characteristics that can only be achieved by warming it first (e.g., automotive parts, hand tools, engine parts and tractor parts). hot forging offers crucial production efficiencies. Strength, integrity & material savings are a few of the benefits achieved using Stamtec forging presse .

Highligts Hot Forging Press

Both of our warm-hot forging press machine series provide important advantages for your operation: Design provides superior compressive strength, deflection, torsion and vibration resistance. The frame on these metal presses is connected with four full-length steel tie rods that are .

Hot Forging Power press

Key Features

  • Fast production method
  • Strong parts with good mechanical properties
  • More cost effective for higher volume runs
  • No wasted material
    • Download brochure



    Technical Specifications

    Technical Specifications
    MODEL/UNIT
    CI 400
    CI 630
    CI 800
    CI 1000
    CI 1600
    Capacity
    Ton
    400
    630
    800
    1000
    1600
    Nominal Force Stroke
    mm

    5
    5
    5
    5
    6
    Length of Slide stroke
    mm
    175
    200
    220
    250
    600
    Strokes per minute
    spm
    100
    95
    90
    85
    70
    Effective strokes per minute
    spm
    18
    18
    18
    16
    16
    Max. Shut Height
    mm
    500
    550
    630
    720
    800
    Max. height for die
    mm
    290
    290
    350
    400
    400
    Adjust of Shut Height
    mm
    10
    10
    10
    10
    10
    Table area (LRXFBX Thickness)
    mm
    780x840x120
    880x880x150
    1000x1000x180
    1120x1050x200
    1200x1200x250
    Slide area ( FBXLR)
    mm
    595x555
    645x695
    820x720
    950x800
    1080x1040
    Slide table area (LRXFBX Thickness)
    mm
    595x555x90
    645x635x110
    820x720x120
    950x800x120
    1080x1040x150
    Shank hole diameter
    mm
    50
    60
    60
    60
    60
    Slide Knockout
    Knockout Force
    kn
    60
    60
    70
    80
    80
    Knockout Stroke
    mm
    20
    20
    25
    30
    40
    Down Knockout
    Knockout Force
    kn
    200
    300
    400
    500
    600
    Knockout Stroke
    mm
    40
    40
    40
    40
    60
    Power of main motor
    hp
    40
    50
    60
    75
    120
    Power of slide adjust motor
    hp
    1
    1.5
    20
    3
    4
    Machine Weight (approx.)
    kg.
    38000
    43000
    65000
    80000
    110000
