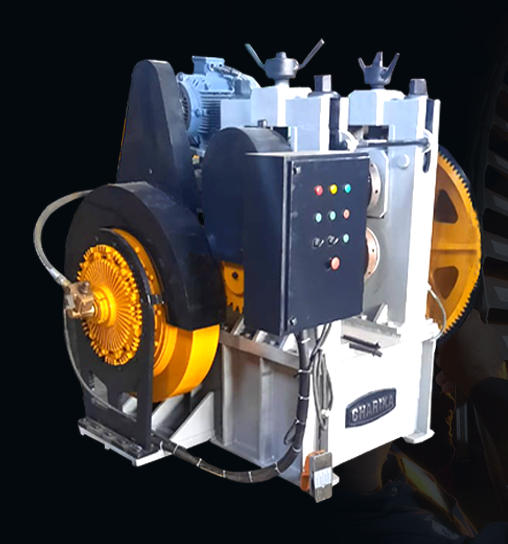

Roll Forging Reducer Machine

Charika Roll Forging Reducer machine is mainly used for the pre-forging of closed die forgings or doing the final forgings. It can be composed of a forging production line with a CNC forging hammer, hydraulic hammer, electric screw press, etc forging machine. It can be an automation rolling forging production line match with an automatic robot or arm. it's widely used in automobiles, tractors, hand tools,etc forging industry.

Silent Feature of Machine

Our Hot Roll Forging Reducer Machine Gives High Performance, Resistant to corrosion, Low power consumption, High tensile strength and Easy maintenance,Mechanical Pneumatic clutch. Design of Product, development, manufacturing and quality control, is carried out meticulously.

TRoll Forging Reducer Machine

Key Features

  • Sturdy construction
  • High operational fluency
  • Low power consumption
  • Negligible maintenance
    • Download brochure



    Technical Specifications

    S. No.
    MODEL
    UNIT
    CIR-140
    CIR-170
    CIR-220
    CIR-300
    1 ROLLER DIA MM 140 170 220 300
    2 ROLLER C.D. MM 250 308 310 540
    3 FORGE ROLL EFEXCTIVE WIDTH MM 220 240 260 580
    4 CENTER ADJUSTMENT MM 5 8 10 18
    5 MAX. MAT. DIA. MM 28/30 45 60 95
    6 MAX. MAT.LENGTH MM 400 490 600 1000
    7 STROKE PER MIN. SPM 48 45 45 40
    8 MAIN MOTOR KW 10 20 25 30
    9 CLUTCH TYPE TYPE PHNEUMATIC PHNEUMATIC PHNEUMATIC PHNEUMATIC
    10 AIR PRESSURE Kg/c㎡ 5.5 5.5 5.5 5.5
