Friction Drop Hammer-Forging hammer for Blacksmith

Friction Drop hammer workers utilise forging equipment (Blacksmith),specifically Forging hammers in order to form ferrous and non-ferrous metal work pieces to their desired shape. They tend the belt drop forging hammers that are dropped onto the work piece in order to reshape it after the form of the die, which can be closed or open.

Type of Metal

Qualities, specifications, applications and reactions to different fabricating processes of various types of metal, such as steel, Alloy stell,High speed alloy steeland others.

Quality Standards

The national and international requirements, specifications and guidelines to ensure that products, services and processes are of good quality and fit for purpose.

Drop hammer types

various type of types of hammers used in the forging process, such as a Belt Drop hammer, friction drop hammer, ,power drop hammer, and others.

.

Forging process

The various processes in the metal forming practices of forging, such as swaging, open-die forging, automatic hot forging, impression-die forging, roll forging, press forging, and others.

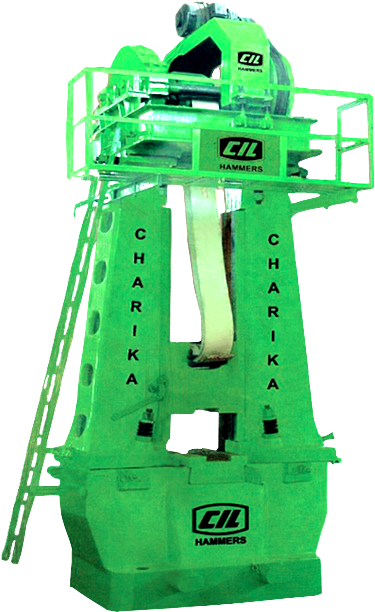

A friction drop hammer for Blacksmith india

Key Features of Forging Hammer

  • Fast production method
  • Strong parts with good mechanical properties
  • More cost effective for higher volume runs
  • No wasted material
    • Download brochure



    Technical Specifications

    SIZE OF HAMMER Kgs. 300 500 750 1000 1500 2000 2500 3000 4000
    WT. OF TUP Kgs. 325 550 850 1100 1600 2100 2600 3200 4200
    SPACE BETWEEN SLIDES mm.
    inches    		 360
    14    		 438
    20    		 480
    22    		 560
    25    		 635
    28    		 710
    31    		 813
    32    		 765
    34    		 813
    32
    STROKE MAX. mm.
    inches    		 1450
    54    		 1525
    5-0    		 1675
    5-6    		 1675
    5-6    		 1830
    6-0    		 1830
    6-0    		 1830
    6-0    		 2285
    7-6    		 1830
    6-0
    TUP FRONT TO BACK mm.
    inches    		 330
    13    		 352
    14    		 410
    16    		 432
    17    		 508
    20    		 660
    26    		 685
    27    		 730
    29    		 711
    28
    TOTAL HEIGHT mm.
    Ft.    		 5000
    15-6    		 5262
    17-3    		 5740
    18-10    		 6000
    19-0    		 6450
    21-2    		 6790
    22-2    		 6865
    22-6    		 7390
    24-3    		 8535
    28-0
    MAX. NO OF BLOWS S.S F.S 95
    45    		 100
    50    		 90
    45    		 80
    40    		 65
    35    		 65
    35    		 60
    30    		 55
    25    		 30-35
    15-10
    MAX. WT. OF TOP DIE Kgs. 100 150 225 280 475 525 600 775 1000
    GR. WT. (APPROX.) Tons 10 21 27 34 51 64 75 88 100
    ELECTRIC MOTOR HP 20 30 40 50 75 100 125 125 150
    MOTOR RATING 50 Cycle 440 Volts 3 Phase 1440 R.P.M Slipring Moter
